| Product parameters | |
| Model: | IDM-MJ01 |
| MOQ(PCS): | 1000 |
| FOB(Zhongshan): | $9.8-16.8 |
| Power(w): | 350w/400w(AC) |
| Motor Type: | AC(5425/5430/5435) |
| Producing Rate: | 500g/min |
| Speed(Rpm): | Two speed controller |
| Housing Material: | PP/PC |
| Capacity(L): | Juicer 600ml/meat grinder 2L |
| Blade material: | Stainless Steel/ stainless steel gear/ Plastic Gear |
| Cantainer Material: | Stainless Steel Bowl |
| N.W/G.W(kg): | 1.7/2.0 |
| QTY/CTN: | 4/8 |
| Certification: | GS/LVD/EMC/ROHS/REACH/ERP/LFGB |
Ideamay Patent Design Multi-function Stainless Steel Meat Grinder with Juicer
| Parameter |
| Cable | 1.2m, 2x0.5m2 cable, euro plug |
| Lock Power | 350w |
| Motor Model | #5425/5430 |
| Motor Material | Pure copper (optional Copper-clad Aluminum) |
| Capatcity | 600/400ml juicer jar; 60g bean grinder cup; 2.0L meat grinder bowl |
| Container Material | Tritan and glass |
| Blade Material | Stainless Steel 304 |
| Housing | ABS+soft rubber |
| Producing Rate | 1.0kg/30sec |
| Speed Controller | One speed |
| Color | Black (More than 1000pcs can custom any color) |
| OEM/ODM logo | Print or Laser |
| ODM Package | Yes, we have designer for one to one service |
| Packing | Color gift box, Surround Foam, PP bags; 8pcs/ctn, 5 layers ctn |
| Loading | 20" 1200pcs, 40" 2500pcs, 40"HQ 3000pcs |
-

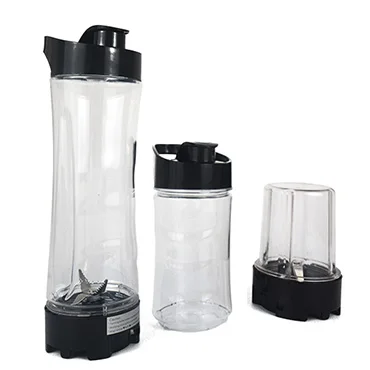

| Product Pictures |
| Technical Parameter |
| Motor Technical Parameters |
 |
Motor model | #5425 |
| V/F | 220v/50Hz | |
| Rated power/Lock power | 200w/350w | |
| Twmperature protection | Yes, when more than 105 centeigrade | |
| Coil | Pure copper(optional copper-clad aluminum | |
| Phase | Single | |
| Anti-interference | No (Optional Anti-interference capacitance) |

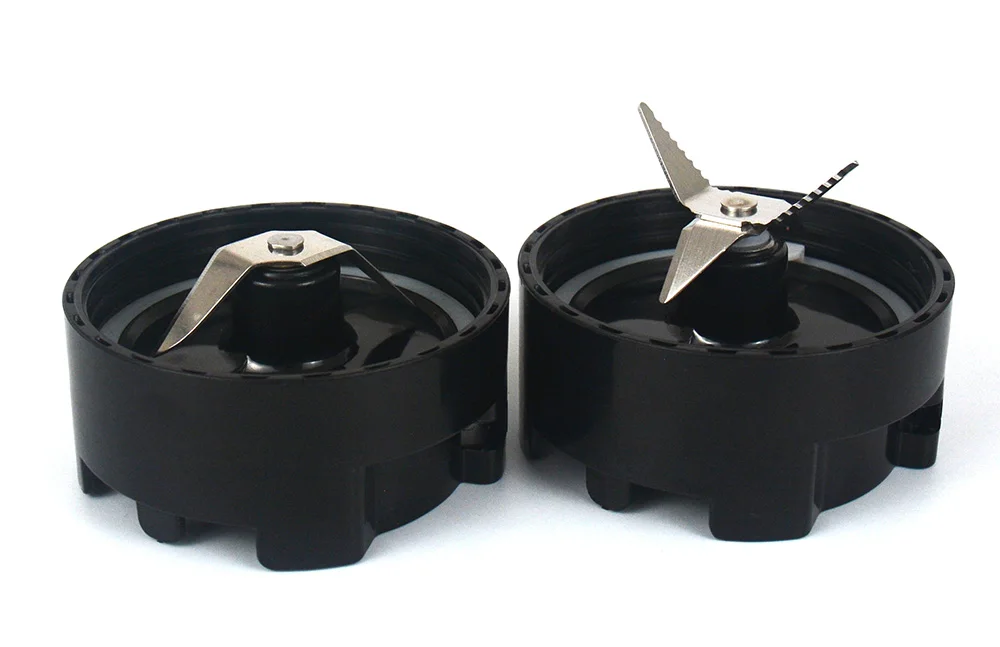

| Blade Set Parameters |
For meat grinder
 |
Material | Stainless steel and plastic-steel |
| Gear | Plastic-steel | |
| Planet Gear | Plastic-steel (optional metal) | |
| Blade Pouch | Yes | |
| Feature | Easy to clean |
For Jucier and Bean Grinder
 |
Bade Material | 304 Stainless steel |
| Bade design | Sawtooth design | |
| Lock design | Special safe lock design | |
| Water-proof | Yes, double water-proof desing | |
| Feature | Easy to clean |
| Container |
For meat grinder
 |
Material | 304 Stainless Steel(Optional Glass/AS) |
| Capacity | 1.8/2.0L | |
| Thickness | 0.8mm | |
| Accessory | Non-slip mat | |
| OEM Logo | Print or Laser |
For Juicer and Bean Grinder
 |
Material | Tritan/PC+ABS |
| Capacity | 600ml/400ml Travel Cup, 60g Bean Grinder Cup | |
| Thickness | 1.0mm | |
| Grade | Food Grade | |
| OEM Logo |
| Body |
 |
Material | ABS+Soft rubber coat |
| Leakage Protection | Yes | |
| Micro Switch | Yes | |
| Heat dissipation design | Safe heat dissipation design | |
| OEM Logo | Print or Laser |
| Package |
| Material | Color gift box(Optional 3/5 layers Kraft paper) | |
| Size | 310x310x335mm (6/8pcs/ctn) | |
| Drop Testing | export standard with 55cm testing | |
| Color | Any color | |
| Design | Free Pakcage Design |
| FOB Group |
| A | B | C | D | E | |
| Motor Body(Main body) | Meat Grinder Set | 600ml Juicer Set | 400ml Juicer Set | Bean Grinder Set | |
| 1 | Motor #5425 $8.5 | AS 1.2L $1.4 | Tritan $2.4 | Tritan $1.4 | Tritan $1.4 |
| 2 | Motor #5430 $8.8 | Glass 2.0L $2.2 | PC $1.5 | PC $1.0 | PC $1.0 |
| 3 | Stainless steel 2.0L $2.4 | ||||
|
Instance: Total=A1+B3+C1=8.5+2.4+2.1=$13 |
|||||
